SPECIFICATIONS

Overview:

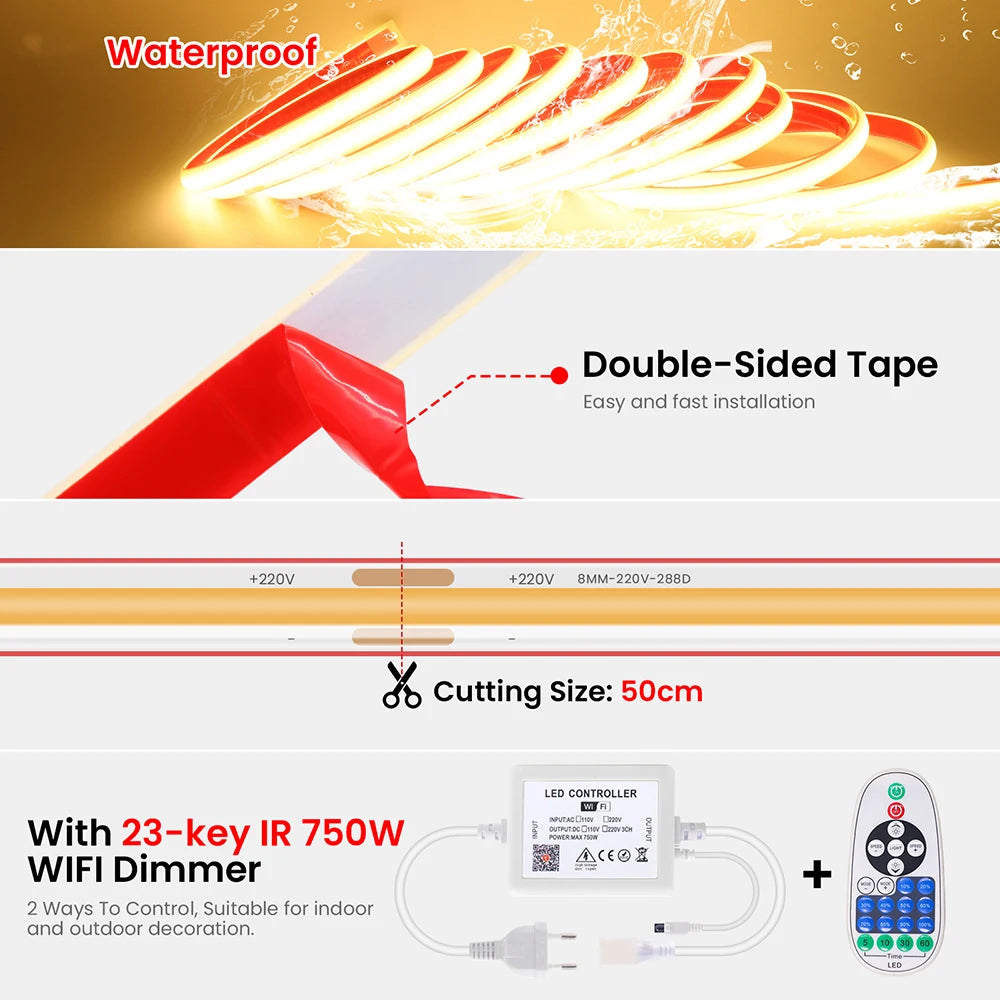

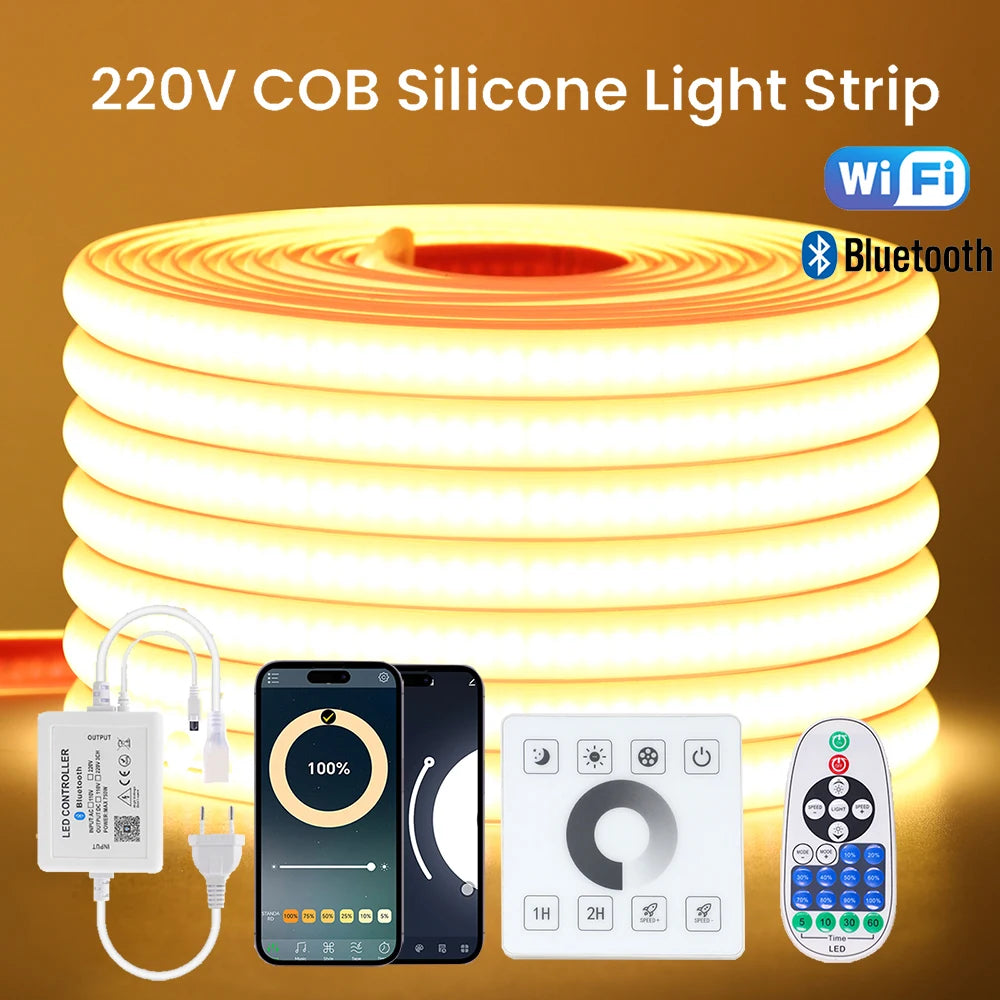

1. This is a 220V COB fully waterproof light strip (with double-sided tape). As the controller is not waterproof, it is generally suitable for indoor installation (for safety reasons, it cannot be used on water or underwater). If installed outdoors, it is necessary to ensure the waterproofing of the controller and light strip joints and ends.

2. Lightweight, fixed with double-sided tape, no need for snap fasteners, easy to install, high brightness, uniform color, high visibility, COB light strip without dark areas, stable quality, suitable for engineering decoration.

Specifications:

Input voltage: AC220-240V

Number of LEDs: 288LEDs/M

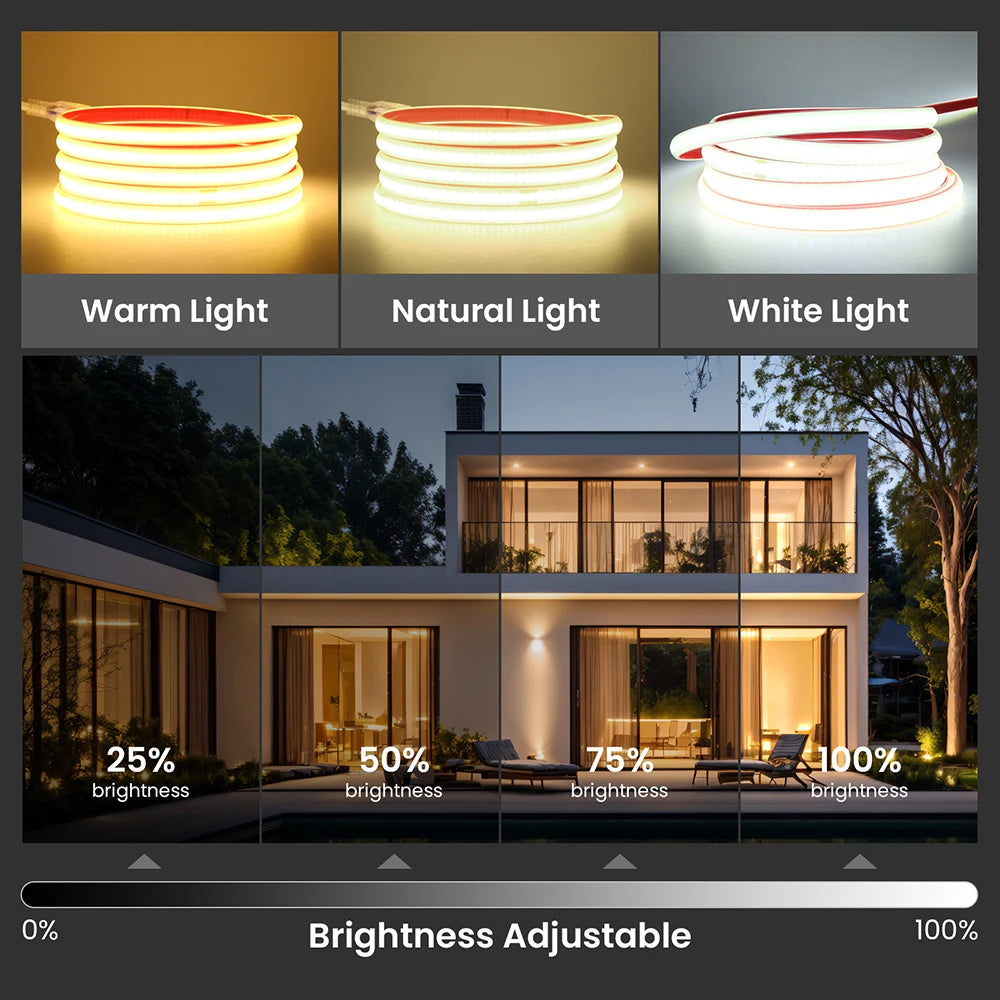

Color: White light (6000-6500K)/Warm white (3000-3500K)/Natural white (4000-4500K)

Control mode: 23keys remote/Bluetooth/WIFI/touch panel

Power type: EU plug

Outer dimensions of light strip: W9-10mm x H4-5mm

Cutting length: can be cut every 50cm

Waterproof rating: IP67 Waterproof (if installed outdoors, waterproof measures need to be taken for the controller, light strip connector, and tail end to prevent water ingress)

Waterproof rating of controller: IP20, not waterproof

Dimmer total length: 40-50cm

Length: 0.5M/1M/2M/3M/4M/5M/6M/7M/8M/9M/10M/11M/12M/13M/14m/15M/20M/25M/30M/35M

Self adhesive: Yes

Working temperature:- 20 ° C to+50 ° C

Storage temperature:- 30 ° C to+60 ° C

Lifespan: 50000 hours

Features:

Bluetooth Remote Kit :

①23-key remote control and mobile app for Bluetooth operation, enabling brightness and speed adjustments, delayed shutdown, and power-off memory.

②Compatible with high-voltage LED single-color light strips, modules, neon strips, and luminous words.

③Equipped with a microphone, lights sync with music rhythm in music mode.

WIFI Remote Kit :

①This smart dimmer supports voice control via Amazon Alexa and Google Home, allowing you to turn lights on/off with simple voice commands.

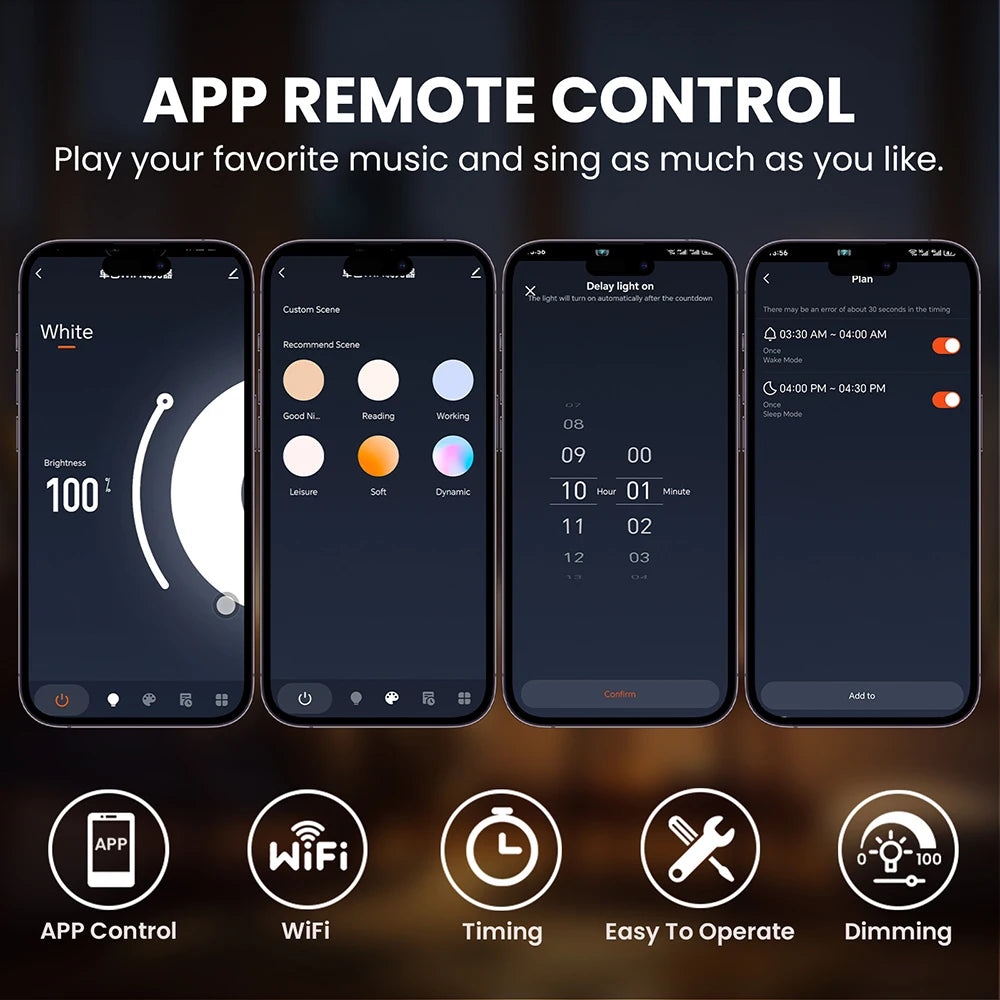

②It also offers APP & remote control functionality, enabling you to manage lights via a smartphone, provided your phone is connected to a 2.4 GHz Wi-Fi network.

③The dimmer provides 1%-100% brightness adjustment for dimmable lights, creating custom lighting atmospheres. A timer feature allows lights to turn on/off automatically based on schedules, including sunrise and sunset settings, helping reduce energy costs.

Wall Touch Panel Remote Instructions:

①Brightness Adjustment: Stepless dimming for precise control.Speed Control: 10 adjustable levels.

②Product Code Matching: Press and hold the Night Light button for 5 seconds after powering on; the light will flash slowly 3 times.

③Code Clearing: Press and hold the Maximum Brightness key for 5 seconds after powering on; the light will flash quickly 3 times.

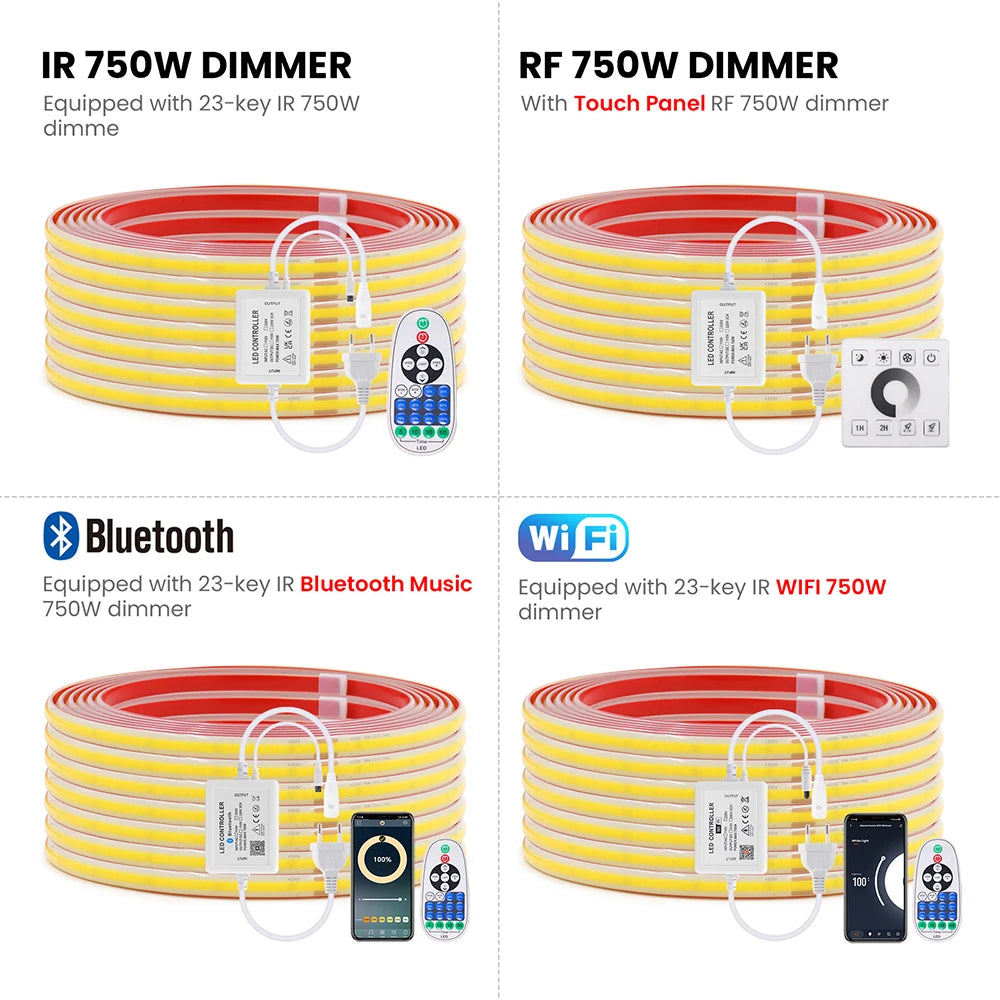

Package Includes:

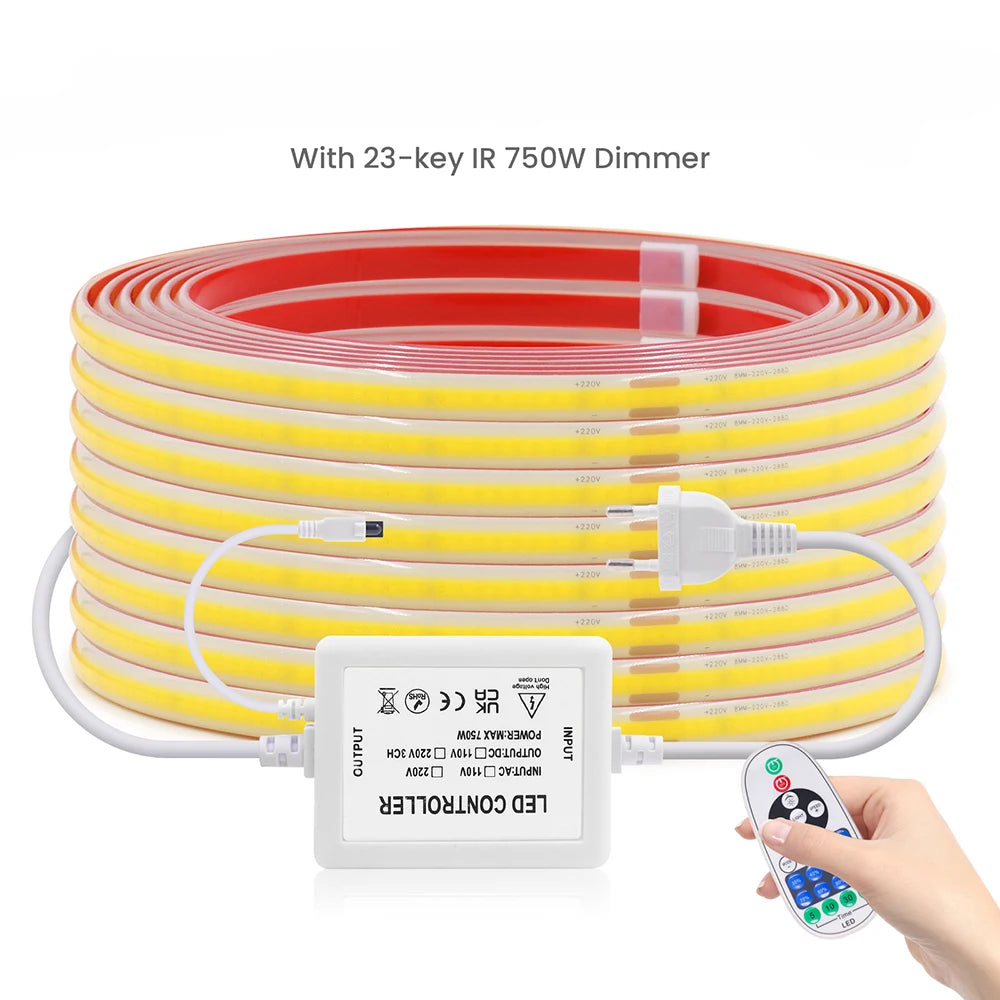

23key Remote Kit:

1 x COB LED light strip

1 x 23key IR remote control（no battery）

1 x 750W led controller with EU power plug

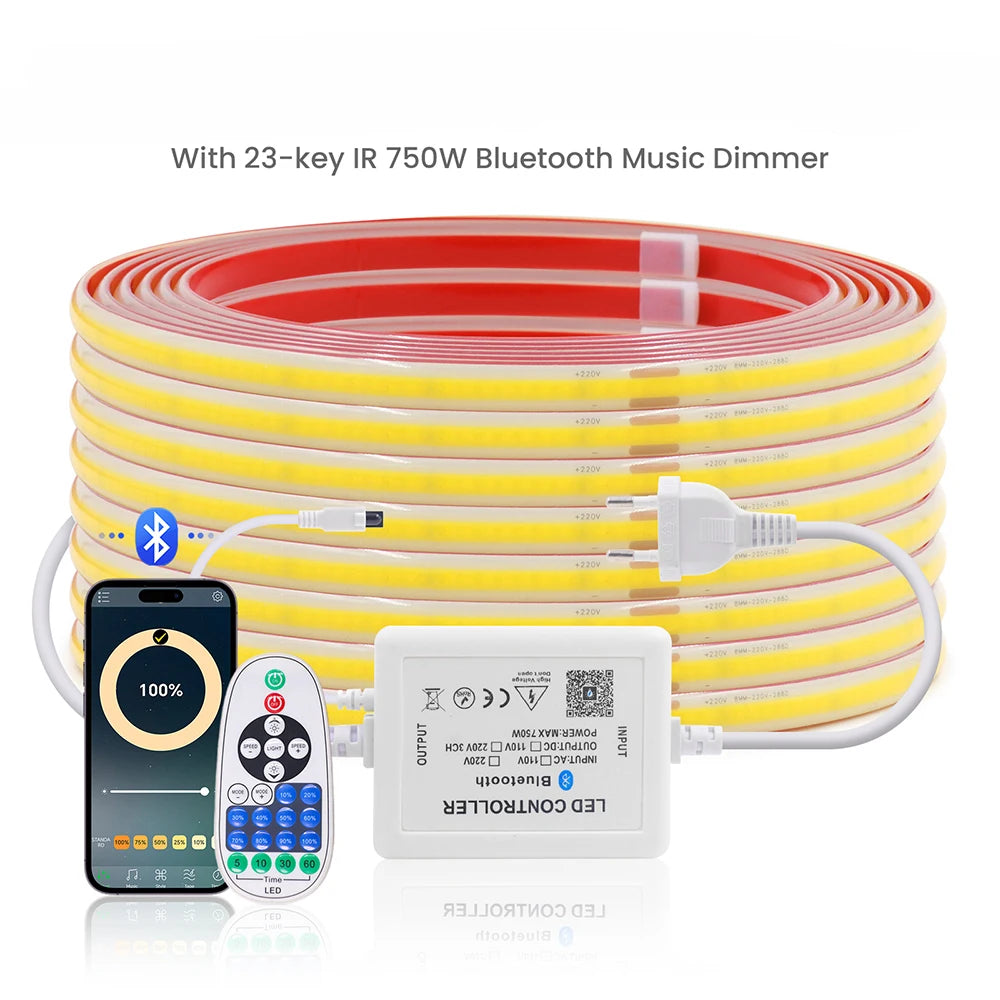

Bluetooth 23key Kit：

1 x COB LED light strip

1 x 23key IR remote control（no battery）

1 x 750W Bluetooth controller with EU power plug

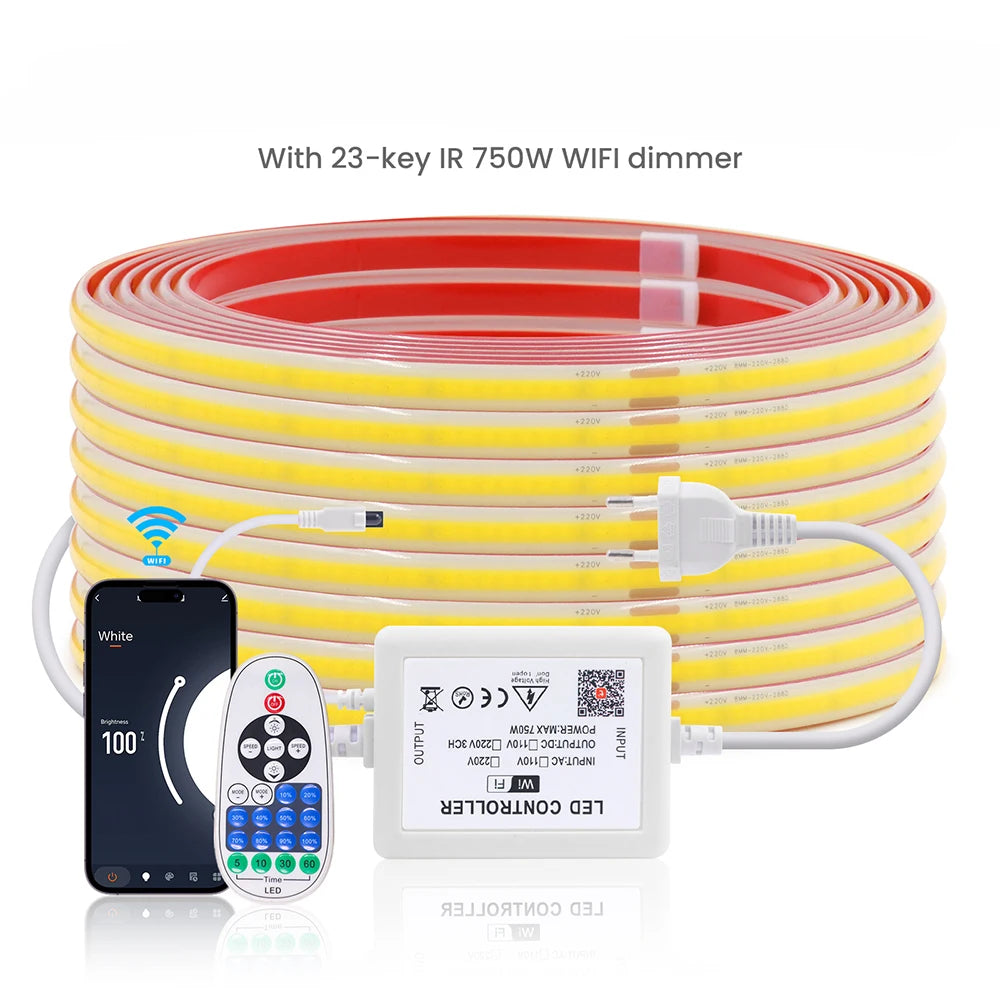

WIFI 23key Remote Kit：

1 x COB LED light strip

1 x 23key IR remote control（no battery）

1 x 750W WIFI controller with EU power plug

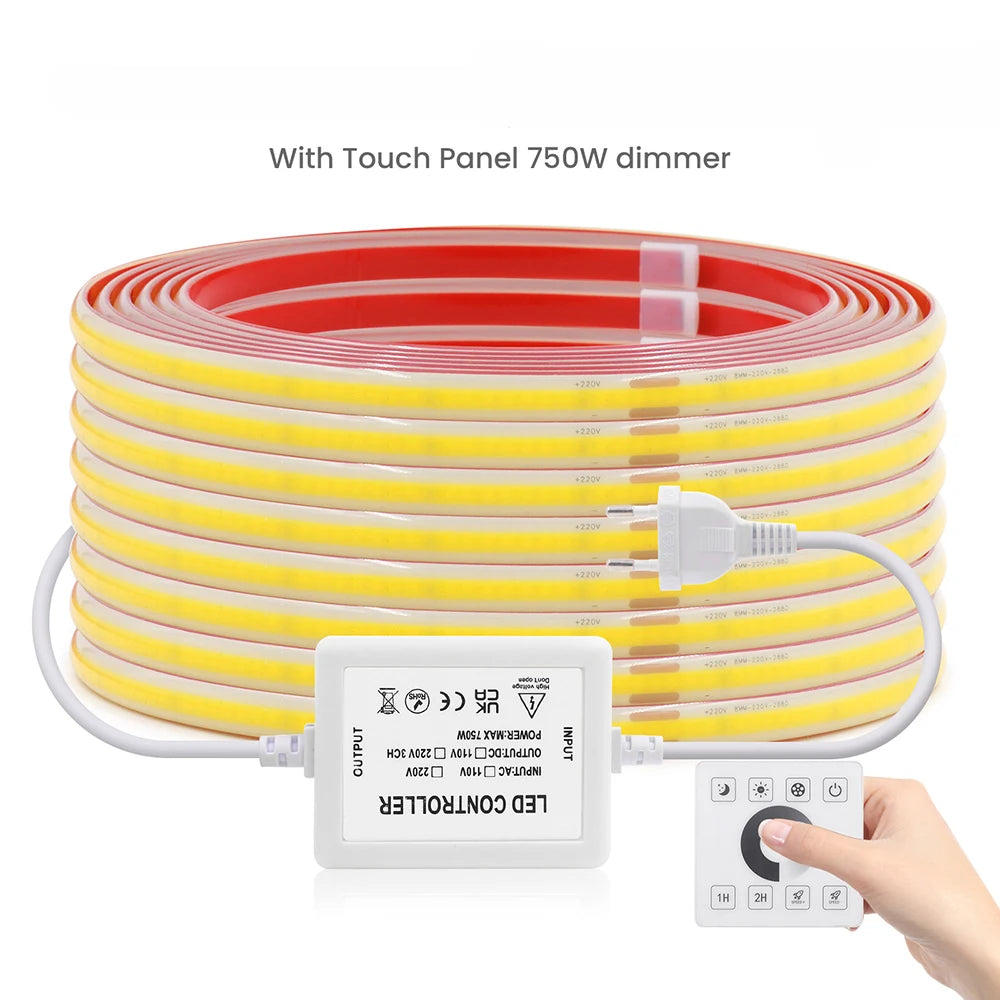

Wall Touch Remote Kit:

1 x COB LED light strip

1 x Wall Touch RF remote control

1 x 750W led controller with EU power plug

Note：No Phone！！！
